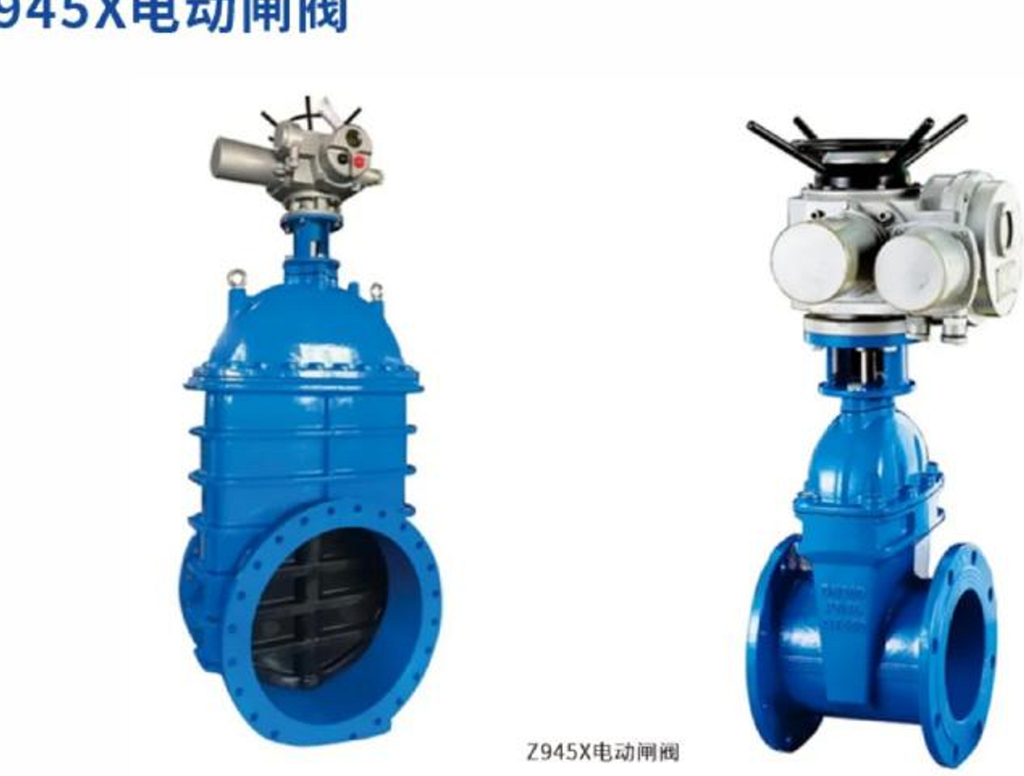

Z945X Electric Actuated Resilient Seated Gate Valve
Electric resilient seated gate valve for local or remote pipeline isolation, with manual override and selectable actuator protection grades.
Price
Contact for quote
Specifications
Model
Z945X
Valve type
Electric actuated resilient seated gate valve
Nominal diameter
DN50-DN1200
Nominal pressure
PN1.0-PN1.6 MPa for listed range
Operation
Electric and manual
Control
Local or remote
Actuator options
DZW10-DZW250 by valve size
Body coating
Epoxy resin
Applicable media
Water, sewage and seawater
Configuration note
Confirm actuator brand, voltage, control box and protection grade
Product Overview
The Z945X electric actuated resilient seated gate valve supports local and remote control as well as electric and manual operation. Different actuator brands, protection grades and explosion-proof options can be selected according to project requirements. Unless otherwise specified, a domestic actuator is normally supplied. A matching electrical control box should be requested at the quotation stage.
The fully rubber-covered gate provides sealing compensation. A flat valve bottom helps reduce debris accumulation, while the epoxy-coated body improves corrosion resistance for water and wastewater applications.
Send Inquiry
Fill out the form below and we will get back to you as soon as possible.
