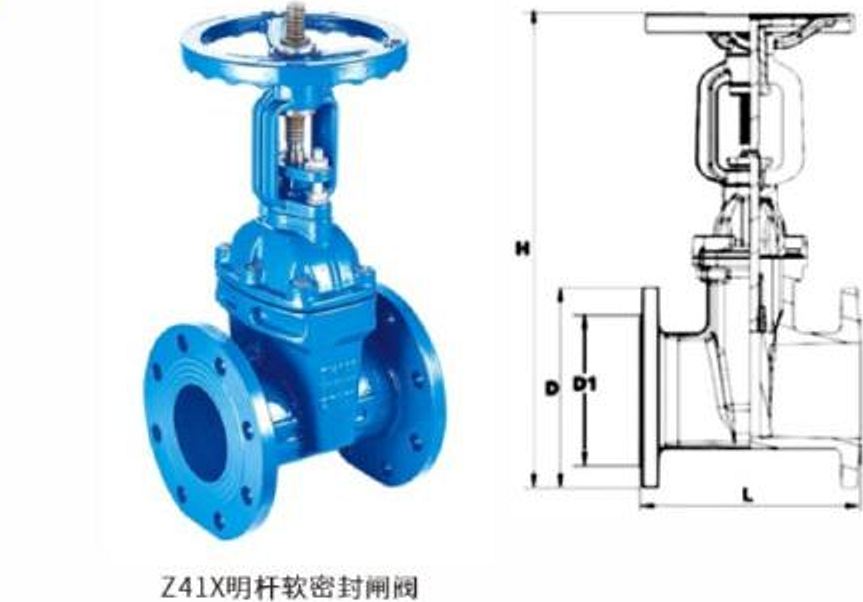

Z41X rising stem resilient seated gate valve with dimensional drawing
Gate Valves

Z41X Rising Stem Resilient Seated Gate Valve

Rising stem resilient seated gate valve with visible valve position for fire protection, waterworks and industrial isolation service.

Price

Contact for quote

Send Inquiry

Specifications

Model Z41X
Valve type Rising stem resilient seated gate valve
Nominal diameter DN25-DN600
Nominal pressure PN1.0-PN2.5 MPa
Working temperature 0-80 C
Applicable media Water, oil and gas
Flange standards GB/T 17241.6 and GB 9113
Test standards GB 13927 and API 598
Body options Ductile iron or stainless steel
Seat options EPDM or NBR

Product Overview

The Z41X rising stem resilient seated gate valve combines resilient sealing with a clearly visible indication of valve opening. It is intended for reliable on-off isolation and is commonly used in fire protection and industrial systems. The catalogue recommends installation above ground.

Available configurations should be confirmed against the required medium, pressure, temperature, connection standard and installation conditions before quotation.
