D71X Lever-Operated Wafer Butterfly Valve
Compact resilient-seated wafer butterfly valve for manual quarter-turn isolation and flow control. Catalogue range DN40-DN150, PN10-PN16.
Price
Contact for quote
Specifications
Model
D71X
Valve type
Lever-operated resilient-seated wafer butterfly valve
Nominal diameter
DN40-DN150
Nominal pressure
PN10-PN16
Shell test pressure
1.5-2.4 MPa
Seat test pressure
1.1-1.76 MPa
Working temperature
0-80 C
Applicable media
Water and mildly corrosive fluids
Body
QT450 ductile iron
Disc
QT450 ductile iron
Stem and shaft
Stainless steel
Seat
Nitrile rubber
Operation
Lever handle
Function
Isolation and flow regulation
Product Overview
The HSVA D71X lever-operated wafer butterfly valve provides compact 90-degree operation for isolation and flow regulation in water supply, drainage, power, chemical and building-services pipelines. The catalogue lists a QT450 ductile-iron body and disc, stainless-steel stem and shaft, and a nitrile-rubber resilient seat. Its short face-to-face length, low operating torque and simple maintenance suit projects where space and reliable manual operation matter.
For overseas distributors, EPC contractors and project buyers, HSVA can review the required DN schedule, pressure rating, medium, temperature, flange standard, face-to-face dimensions, material selection and quantity. Send the project specification, drawing and certificate requirements for valve selection and quotation.
Send Inquiry
Fill out the form below and we will get back to you as soon as possible.
Related Products
D341X Worm Gear Flanged Butterfly Valve
Contact for quote
SD343X SD943X SD643 Telescopic Flanged Butterfly Valve
Contact for quote

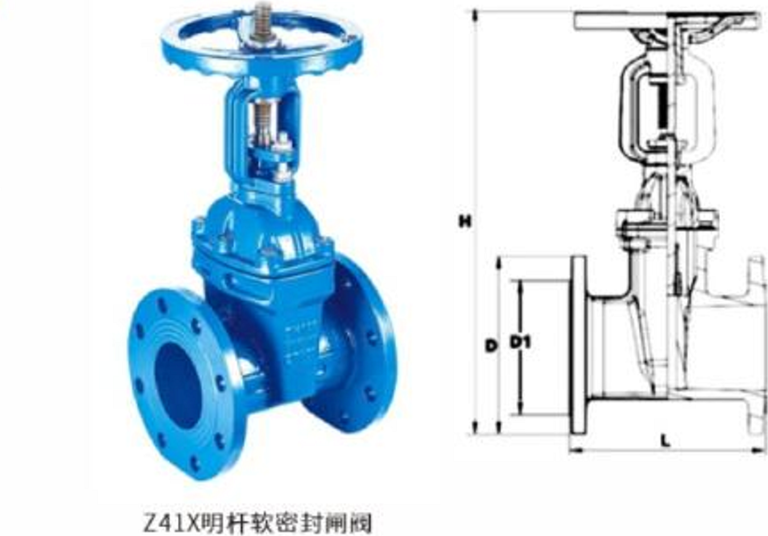

Z41X Rising Stem Resilient Seated Gate Valve
